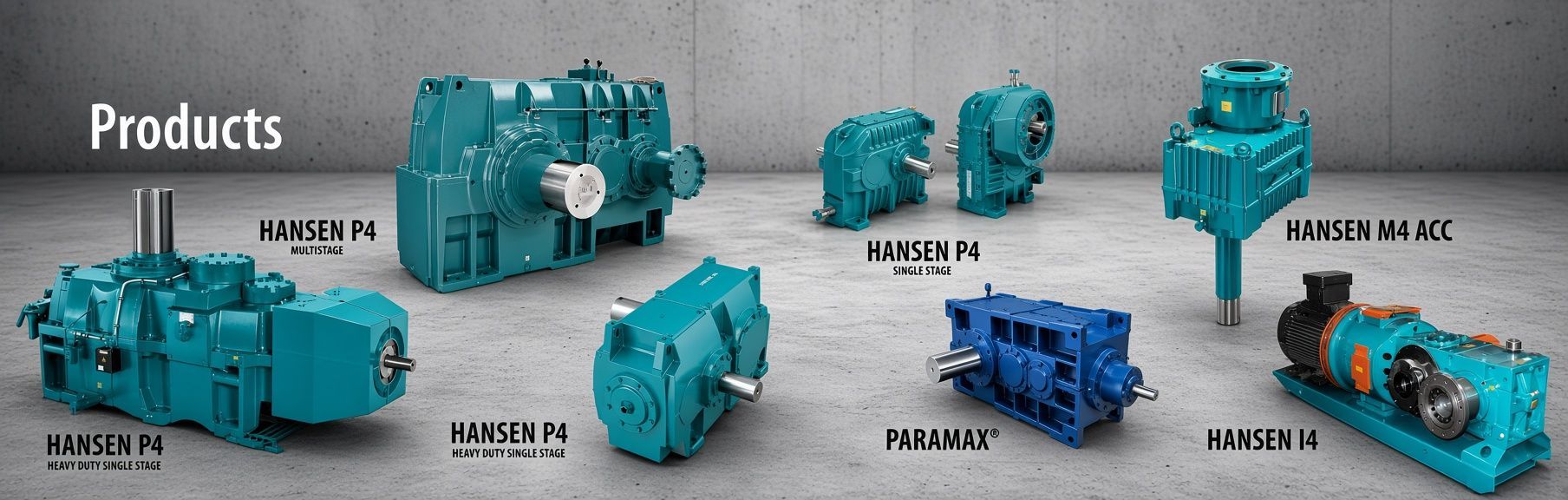

More about Hansen P4
Hansen P4 combines high torque capacity with a design that makes inspection and maintenance easier. The horizontal range offers parallel-shaft and right-angle configurations, with options for complete drive packages.
• Nominal output torque: 6–1,100 kNm across 19 sizes.
• Reduction ratios: 6.3:1–630:1, with special ratios available on request.
• Two-, three- and four-stage configurations.
• Solid or hollow output shafts.
• Split housing and a large inspection cover for convenient access.
• Gear geometry designed to reduce noise, vibration and transmission losses.
• Oil-lock™ sealing at the high-speed shaft and an oil distribution system designed to lubricate bearings during operation.

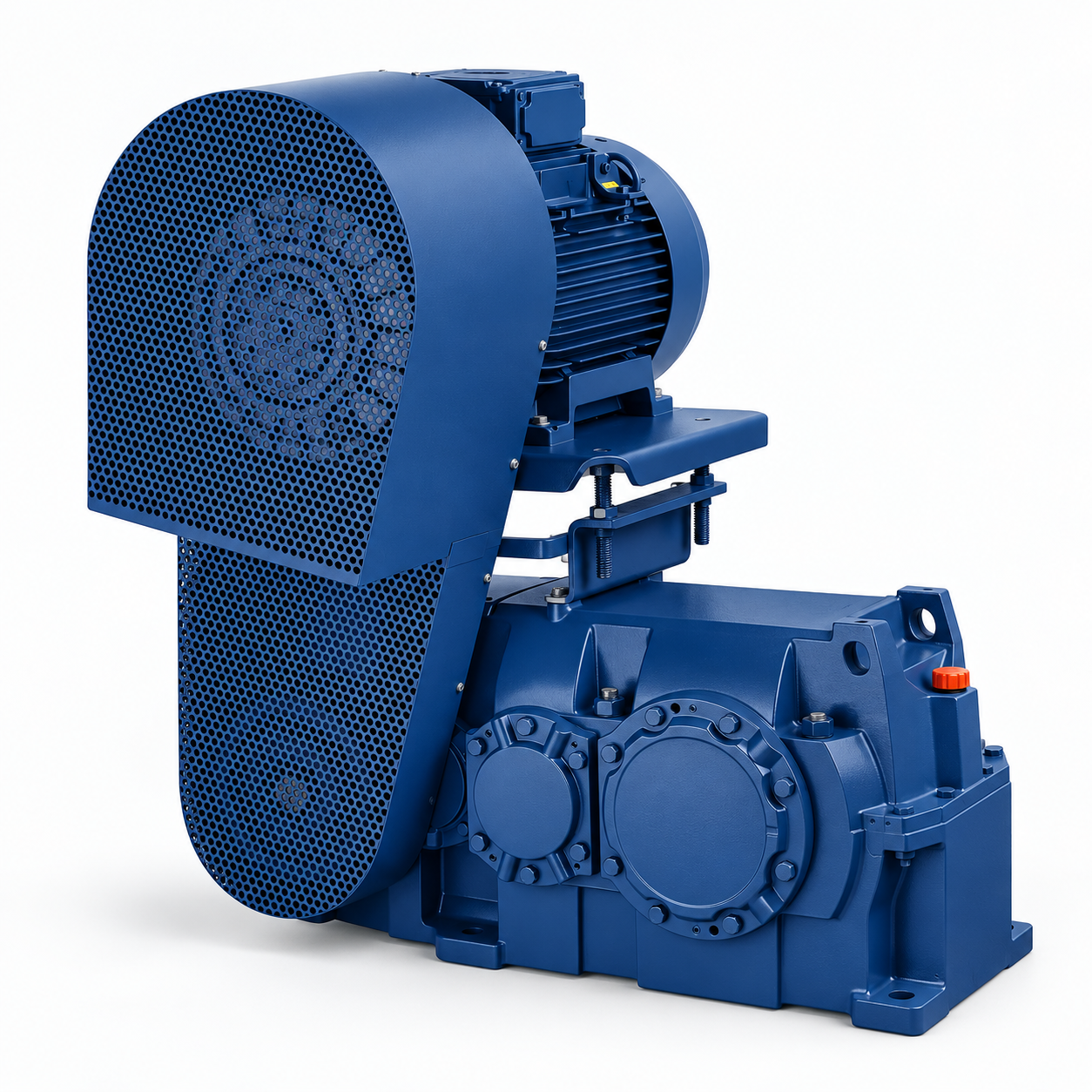

Available options include cooling equipment, condition monitoring and drive packages incorporating motors, couplings and support structures.
Contact Minerva to discuss gearbox selection or a complete drive package for your application.
