More about Sumitomo Cyclo® 6000

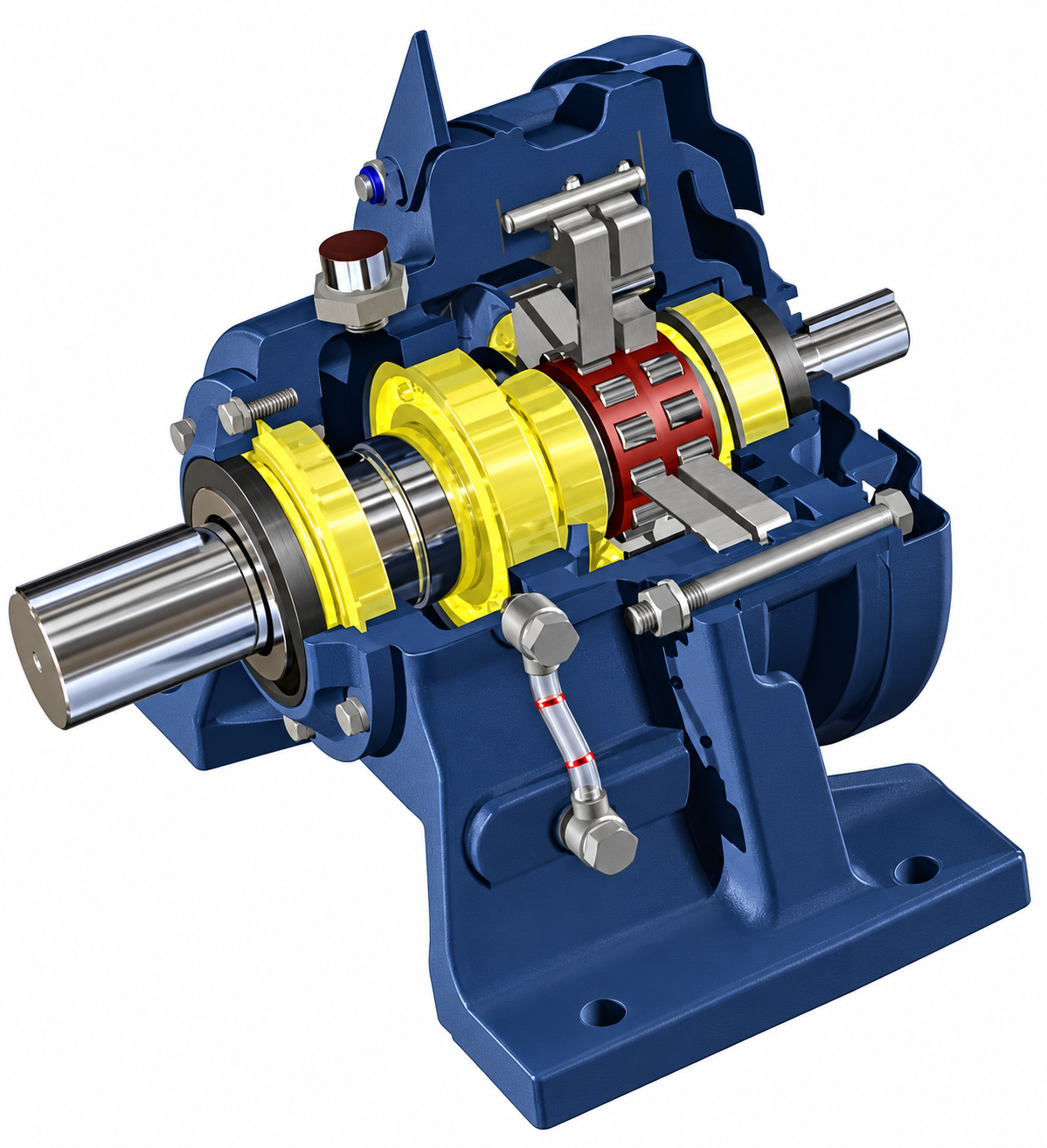

The Cyclo® 6000 uses a cycloidal reduction mechanism with rolling contact to deliver a compact, durable drive. Its design provides high resistance to shock loads and a wide choice of reduction ratios.

• Single-stage reduction ratios up to 121:1.
• Higher ratios available through multistage configurations.

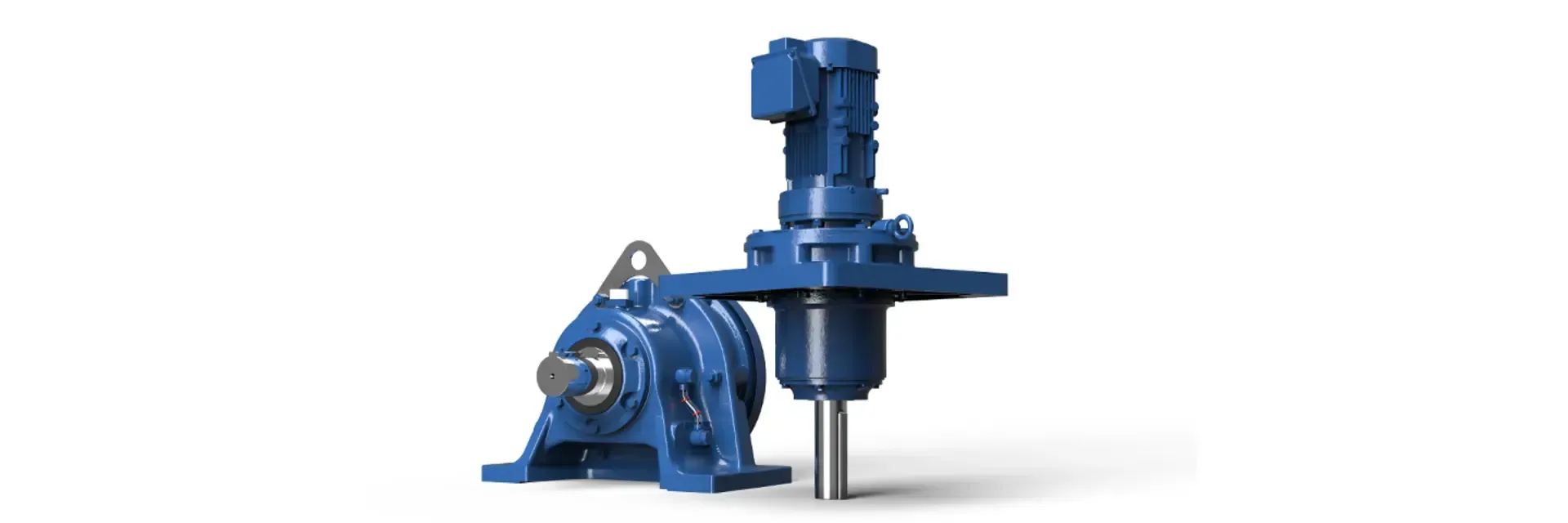

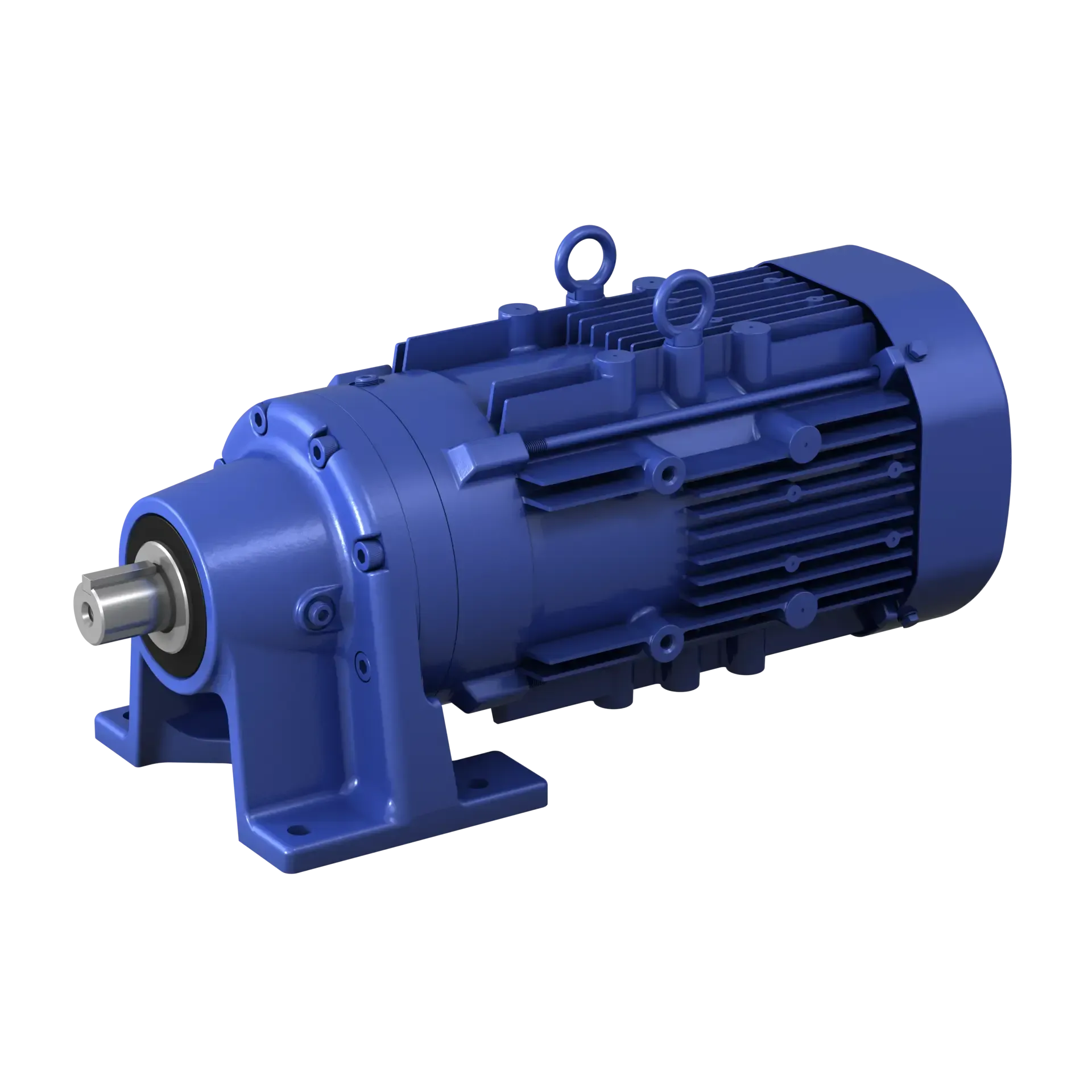

• Foot, flange and case mounting options.

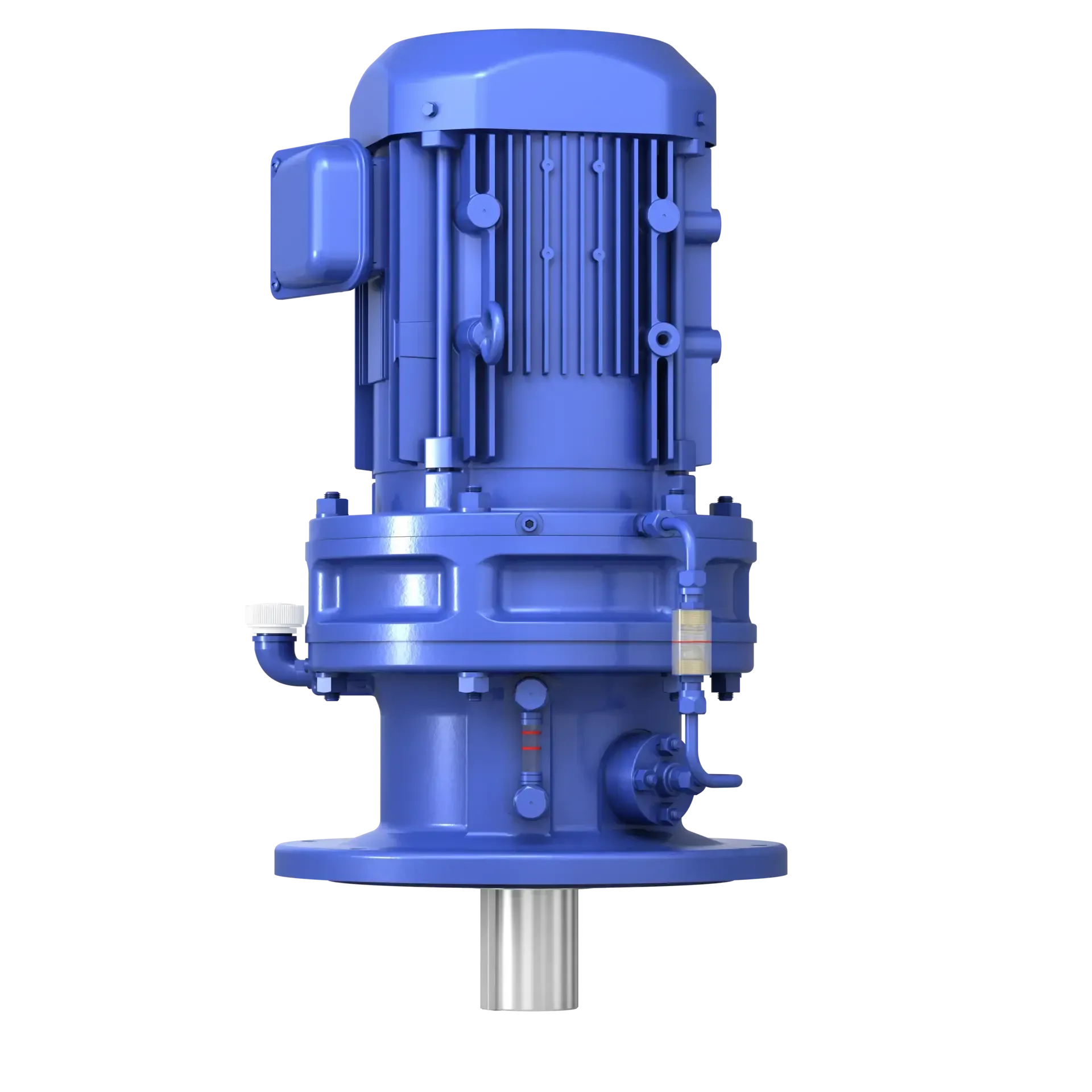

• Horizontal and vertical installation arrangements.
• Reduction components manufactured from bearing-grade steel.
• Grease-lubricated options available, depending on size and configuration.

The range offers flexibility for different installation spaces, operating speeds and duty requirements. Certain low-ratio versions use alternative gearing arrangements.

For selection support, send Minerva your motor power, input and required output speeds, mounting position and operating conditions.
